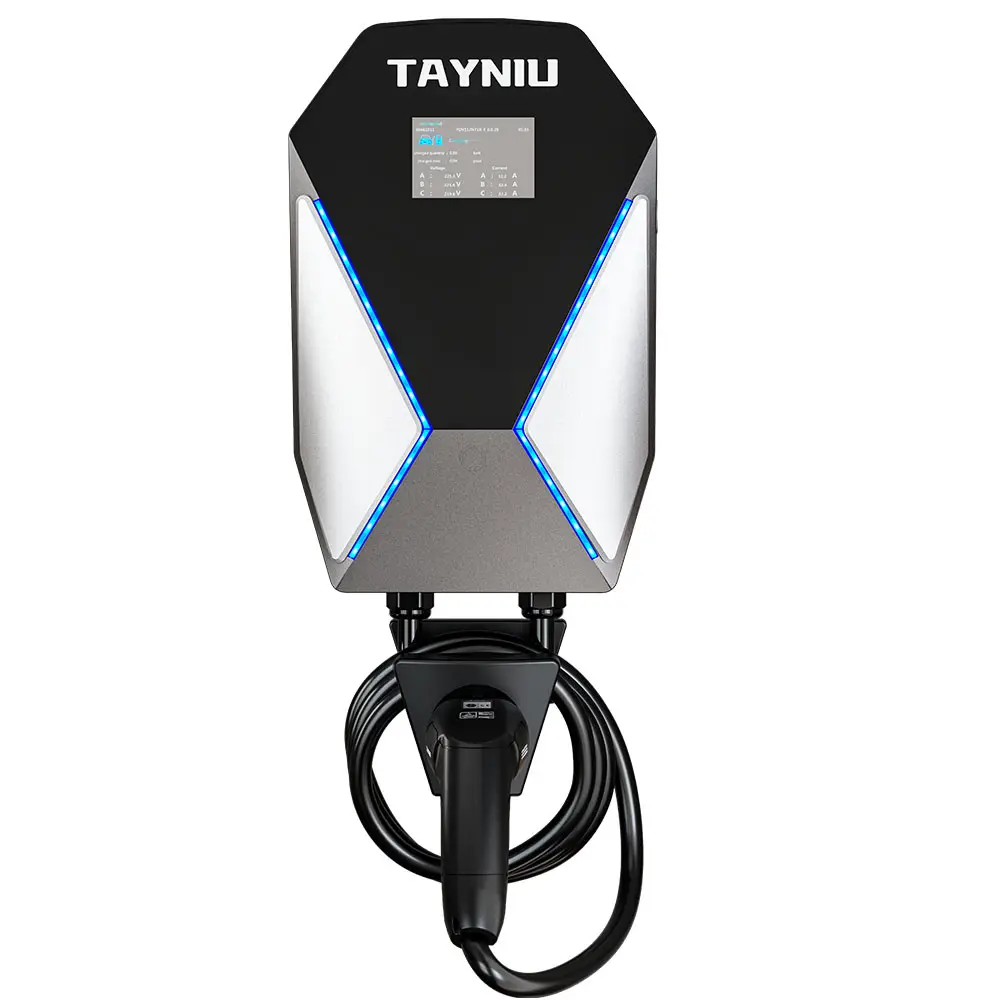

Tayniu electric car charging at home

Versatile Installation: Mounts on walls or columns for flexible use.

Secure RFID Charging: Access via RFID for enhanced security.

Compact Design: Space-saving and energy-efficient.

User-Friendly Interface: Easy charging with an intuitive RFID system.

Enquiry now
WhatsApp
  • Overseas warehouse: Brazil, Mexico, EU, Thailand
  • Payment method: Xtranfer, paypal, T/T, L/C
  • Customised services: customised products, customised packaging

Description

Versatile Installation Options

You’ll have a breeze mounting this on a wall or post! This electric car charging at home is a real space-saver and can fit into loads of places thanks to its flexible installation.



Secure RFID Charging

By employing advanced RFID technology, our electric car charging at home ensures safe utilization through the secure and rapid access to charging functionalities.



Compact and Efficient Design

Our electric car charging at home, being super energy-efficient and designed to take up minimal space, snugly fits into all sorts of environments like a charm!



User-Friendly Interface

Our electric car charging at home offers a simple user experience by means of an uncomplicated RFID technology that enables charging initiation and monitoring.

Appearance structure   Model SpeedyPro 22KW SpeedyPro 11KW SpeedyPro7KW
  Size 355mmx225mmx125mm【H*W*D】
Installation Method Wall-Mounted/Column
  Net Weight 7kg 7kg 5.5kg
  Cable Size 5*6mm²+0.75mm² 5*2.5mm²+0.75mm² 3*6mm²+0.75mm²
  Cable Length 5M or Customizable
Electrical index   Input Voltage AC 380V AC 380V AC 80V-260V
  Input Frequency 50Hz/60Hz
  Max Power 22KW 11KW 7KW
  Output Voltage  AC 380V   AC 380V AC 80V-260V
  Output Current   Three Phase Three Phase Single Phase
  Standby Power 3W
Environment index   Work Humidity 5%~95%(non-condensing)
  Work Temperature -30℃~+50℃
  Work Altitude <2000M
  Protection Class IP65 for Charging box,IP55 for Charging Gun
  Standard Type 1 SAEJ1772、Type 2 IEC 62196-2、GB/T 20234
Flammability rating UL94 V0
  Certificate CE、RoHS、FC、TUV
Functionaldesign   Interface LCD Display Screen
  Plug /
Safety design Earth Leakage,Over Current,Over/Under Voltage,Over/Under Frequency Ground,CP Abnormal,Short Circuit,Over Temperature,Electrostatic,Emergency Stop Button
Packaging specification L*W*H:47*33*22cm

Our Wallbox is compatible with 99% of all electric vehicles, for other models please contact us for advice.

Supportable-Brands

  • Do not submerge the electric vehicle charger in water.
  • Do not step on,fold,or knot the cable.
  • Do not drop the electric vehicle charger or place heavy objects on it.
  • Do not place the charging cable near high-temperature objects when charging.
  • Do not operate the charger outside its temperature range of -25℃ to 55℃.
  • The power input cable should be at least 32.5mm (recommended 34mm)and equipped with a standard 16A socket.It is recommended that the power distribution be carried out by professionals.
  • Do not put your fingers into the charging connector when the power plug is still connected to the power source.
  • Do not use this electric vehicle charger when the cable is damaged.
  • Do not use an extension cord or adapter with this electric vehicle charger.
  • Do not hang the control box during charging to prevent poor con-tact and burning of the power plug.
  • This product has a built-in non-grounding function.Please check with the manufacturer on whether your vehicle requires grounding to avoid electric shock risk.
  • Plug the charger plug into the power supply first,then connect the charging gun to the vehicle to start charging.After charging,unplug the gun from the vehicle before unplugging the charger.Do not unplug while it’s live.

What payment methods are accepted?

We generally accept Xtranfer, paypal, T/T payment methods.

How long does it take to ship an order?

We will send out the goods within 3-10 working days after receiving the payment, if you have customised requirements, the delivery time will be extended to about 30 days.

What types of EV chargers are available?

There are three main types: Level 1 (standard home outlets), Level 2 (dedicated home or public chargers), and DC fast chargers (public charging stations for rapid charging).

How to Choose a Suitable Charger?

  • Check the vehicle manual or open the car charging port todetermine the type of charging interface.
  • If Type 1 interface,choose Type 1 charger.If Type 2 interface,choose Type 2 charger.If GB/T interface,please make a note in the order and contact seller.

How soon will I receive my shipment?

For sample orders or small goods we usually use international express delivery, usually will be delivered in 7-15 working days (if encountered holidays or special circumstances may be delayed); for bulk goods we usually use sea freight, the specific time depends on the destination country and the ship schedule, may be more than a month.
