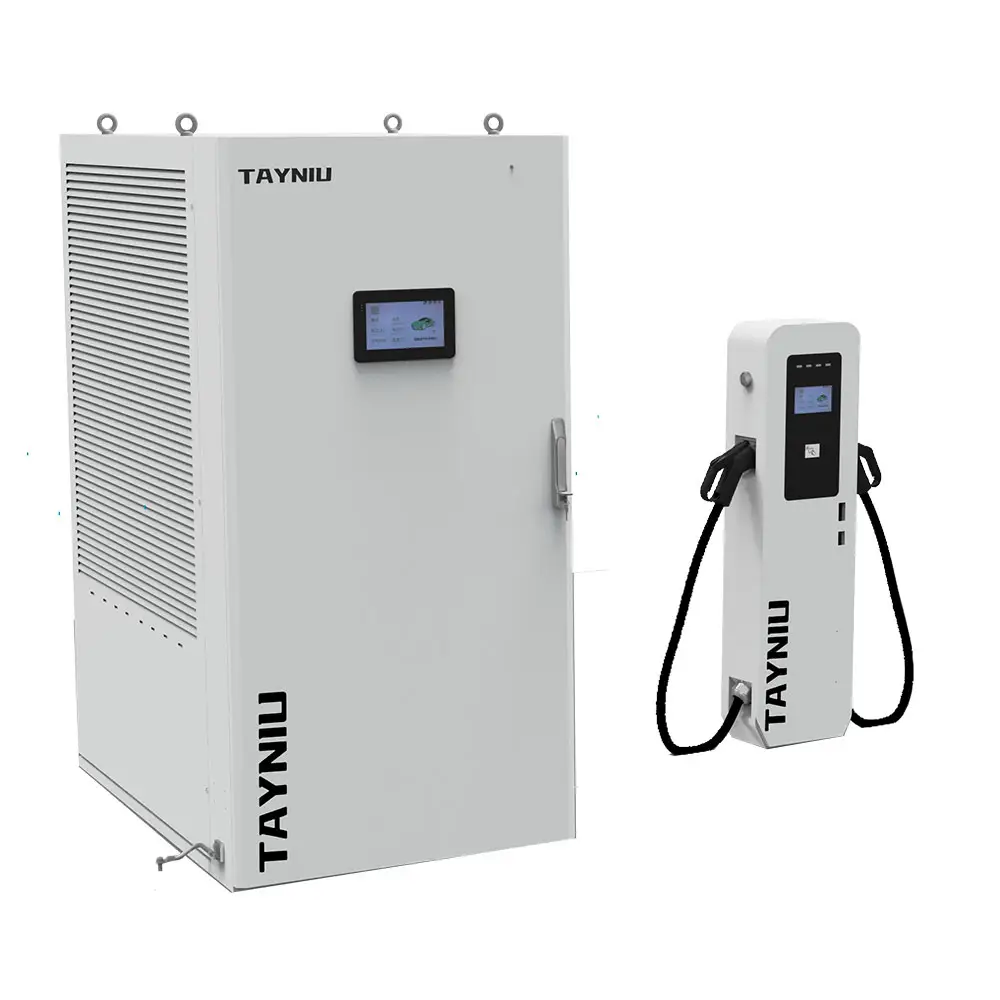

Tayniu commercial ev charging stations

Smart Control: Microcomputer chip for precise management.

Versatile Charging: Touch screen, card swipe, and QR code.

Remote Monitoring: Intelligent alerts, automatic metering, and custom pricing.

Online Payment: Supports online payments and vehicle status monitoring.

Enquiry now
WhatsApp
  • Overseas warehouse: Brazil, Mexico, EU, Thailand
  • Payment method: Xtranfer, paypal, T/T, L/C
  • Customised services: customised products, customised packaging

Description

Intelligent Control Unit:

With the car’s instrumentation microcomputer chip serving as the core control unit, this commercial ev charging stations niftily and efficiently governs the charging process.



Versatile Charging Options:

Among the advanced tools offered by this commercial ev charging stations are touch screens, swipe cards, and QR code scanning. It backs high-tech charging systems as well as plug-and-play devices.



Remote Monitoring and Management:

Not only that, this commercial ev charging stations also comes with remote management and smart audible alerts. This charging station allows for customised multi-hour tariffs, automatic metering and charging, and several running modes to meet all kinds of different needs.



Secure Online Payment:

This commercial ev charging stations not only offers convenient and safe online payments, but also simplifies and adds dependability to transactions. And get this, active tracking of the vehicle status is included in the charging process to ensure effective and safe running.  How cool is that!



Enhanced Safety Features:

Over-voltage and under-voltage protection as well as other safety features on this commercial ev charging stations guarantee dependable and safe charging.

Project Parameters   Project Parameters
rated power 480kW Low voltage auxiliary power supply 12Vdc
Charging terminal Four channels Voltage regulation accuracy ≤±0.5%
Number of charging guns eight precision of steady current ≤±1%
Power distributionmode One input,eight outputs peak efficiency ≥95%
Charge operation mode swiping card, touch screen, APP power factor ≥0.99%
Rated input voltage 380Vac Display medium The main cabinet has a 10-inch screen and the charging terminal hasa 7-inch screen
Rated input current ≤760A charging interface GB/T 20234.3
Rated output voltage 1000 VdcMax dielectric strength ≥2500VAC
rated output current Max 480 A insulating property ≥10MO
level of protection IP54 communication interface network interface/4G
usage temperature -30℃~60℃ altitude ≤2000米
installation method one input,eight output landing mode
main engine size 1890*700*570mm
start method scan QR codes, Swiping card

Our DC Charging Station is compatible with 99% of all electric vehicles, for other models please contact us for advice.

Supportable-Brands

  • Do not submerge the electric vehicle charger in water.
  • Do not step on,fold,or knot the cable.
  • Do not drop the electric vehicle charger or place heavy objects on it.
  • Do not place the charging cable near high-temperature objects when charging.
  • Do not operate the charger outside its temperature range of -25℃ to 55℃.
  • The power input cable should be at least 32.5mm (recommended 34mm)and equipped with a standard 16A socket.It is recommended that the power distribution be carried out by professionals.
  • Do not put your fingers into the charging connector when the power plug is still connected to the power source.
  • Do not use this electric vehicle charger when the cable is damaged.
  • Do not use an extension cord or adapter with this electric vehicle charger.
  • Do not hang the control box during charging to prevent poor con-tact and burning of the power plug.
  • This product has a built-in non-grounding function.Please check with the manufacturer on whether your vehicle requires grounding to avoid electric shock risk.
  • Plug the charger plug into the power supply first,then connect the charging gun to the vehicle to start charging.After charging,unplug the gun from the vehicle before unplugging the charger.Do not unplug while it’s live.

What payment methods are accepted?

We generally accept Xtranfer, paypal, T/T payment methods.

How long does it take to ship an order?

We will send out the goods within 3-10 working days after receiving the payment, if you have customised requirements, the delivery time will be extended to about 30 days.

What types of EV chargers are available?

There are three main types: Level 1 (standard home outlets), Level 2 (dedicated home or public chargers), and DC fast chargers (public charging stations for rapid charging).

How to Choose a Suitable Charger?

  • Check the vehicle manual or open the car charging port todetermine the type of charging interface.
  • If Type 1 interface,choose Type 1 charger.If Type 2 interface,choose Type 2 charger.If GB/T interface,please make a note in the order and contact seller.

How soon will I receive my shipment?

For sample orders or small goods we usually use international express delivery, usually will be delivered in 7-15 working days (if encountered holidays or special circumstances may be delayed); for bulk goods we usually use sea freight, the specific time depends on the destination country and the ship schedule, may be more than a month.
