  • DC Charging Station

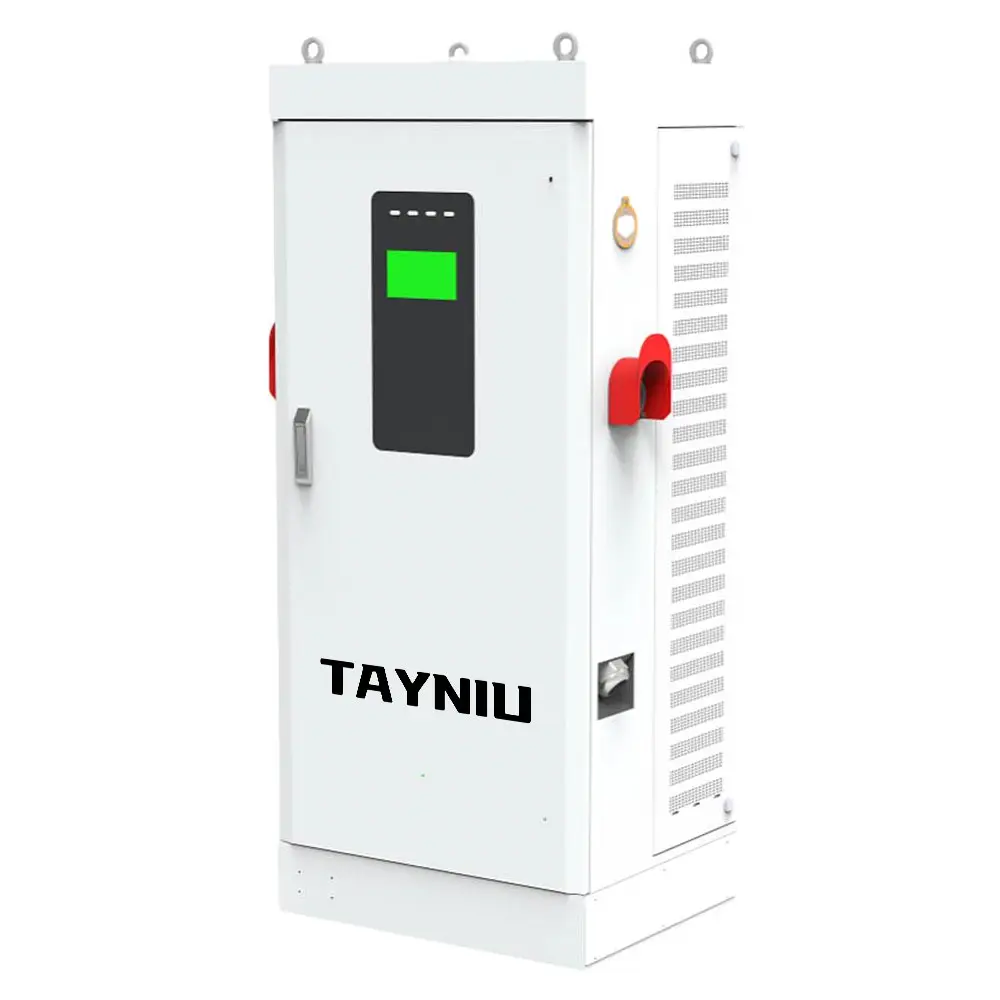

Tayniu DC Charging Station 60KW

Durable Metal Housing: IP55-rated for weather resistance.

Comprehensive Functions: Includes metering, billing, and user management.

Integrated Design: Easy to configure and install.

Advanced Connectivity: GPRS/Ethernet access for QR code payments.

Robust Safety Features: Includes protection against short circuits, overloads, and more.

Enquiry now
WhatsApp
  • Overseas warehouse: Brazil, Mexico, EU, Thailand
  • Payment method: Xtranfer, paypal, T/T, L/C
  • Customised services: customised products, customised packaging

Description

Durable and Weather-Resistant Design

Enclosed in a robust metal container with an IP55 rating, our DC charging station guarantees dependable functioning in all weather.



Comprehensive Public Operation Capabilities

With sophisticated capabilities like metering, billing and user control, this DC charging station satisfies the rigorous needs of public charging systems.



Integrated and User-Friendly Design

The all-in-one design of this DC charging station simplifies the setup process by means of quick configuration and installation.



Advanced Connectivity

The DC charging station is not only amazing but also supports GPRS/Ethernet connectivity! This means it offers seamless access to all kinds of charging platforms. Just scan the QR codes, and voila! Convenient charging is at your service.



Robust Safety Features

Multiple safety features included into this DC Charging Station—emergency stop, short circuit, over-temperature, earth leakage, overload, thunderstorm, over/under voltage, water and dust protection—ensure dependable and safe performance always.

Type GB CEN ANSI JIS
Powerspecification 20kW/30kW/40kW/60kW 20kW/30kW/40kW/60kW 20kW/30kW/40kW/60kW 30kW/60kW
input voltage 380VAC 400VAC 480VAC 400VAC
incoming frequency 50/60Hz 50/60Hz 50/60Hz 50/60Hz
output voltage DC 220V-1000V DC 220V-1000V DC 220V-1000V DC 220V-1000V
level ofprotection IP54 IP54 IP54 IP54
charging interface GB/T 20234.3 CCS2 CCS1 CHAdeMO
usagetemperature -30℃-60℃ -30℃-60℃ -30℃-60℃ -30℃-60℃
ambienthumidity RH5%-95% RH5%-95% RH5%-95% RH5%-95%
altitude ≤2000m ≤2000m ≤2000m ≤2000m
start method plug and play、scanQR codes、swipingcard、NFC plug and play、Swiping card、NFC plug and play、swiping card、NFC plug and play、 swiping card、NFC
communicationmode GB/T27930 DINSPEC70121/ISO15118 IS015118 CHAdeMO
installationmethod console mode
main enginesize 650×393×145mm
start method pug and play、scan QR codes、swiping card、NFC

Our DC Charging Station is compatible with 99% of all electric vehicles, for other models please contact us for advice.

Supportable-Brands

  • Do not submerge the electric vehicle charger in water.
  • Do not step on,fold,or knot the cable.
  • Do not drop the electric vehicle charger or place heavy objects on it.
  • Do not place the charging cable near high-temperature objects when charging.
  • Do not operate the charger outside its temperature range of -25℃ to 55℃.
  • The power input cable should be at least 32.5mm (recommended 34mm)and equipped with a standard 16A socket.It is recommended that the power distribution be carried out by professionals.
  • Do not put your fingers into the charging connector when the power plug is still connected to the power source.
  • Do not use this electric vehicle charger when the cable is damaged.
  • Do not use an extension cord or adapter with this electric vehicle charger.
  • Do not hang the control box during charging to prevent poor con-tact and burning of the power plug.
  • This product has a built-in non-grounding function.Please check with the manufacturer on whether your vehicle requires grounding to avoid electric shock risk.
  • Plug the charger plug into the power supply first,then connect the charging gun to the vehicle to start charging.After charging,unplug the gun from the vehicle before unplugging the charger.Do not unplug while it’s live.

What payment methods are accepted?

We generally accept Xtranfer, paypal, T/T payment methods.

How long does it take to ship an order?

We will send out the goods within 3-10 working days after receiving the payment, if you have customised requirements, the delivery time will be extended to about 30 days.

What types of EV chargers are available?

There are three main types: Level 1 (standard home outlets), Level 2 (dedicated home or public chargers), and DC fast chargers (public charging stations for rapid charging).

How to Choose a Suitable Charger?

  • Check the vehicle manual or open the car charging port todetermine the type of charging interface.
  • If Type 1 interface,choose Type 1 charger.If Type 2 interface,choose Type 2 charger.If GB/T interface,please make a note in the order and contact seller.

How soon will I receive my shipment?

For sample orders or small goods we usually use international express delivery, usually will be delivered in 7-15 working days (if encountered holidays or special circumstances may be delayed); for bulk goods we usually use sea freight, the specific time depends on the destination country and the ship schedule, may be more than a month.
