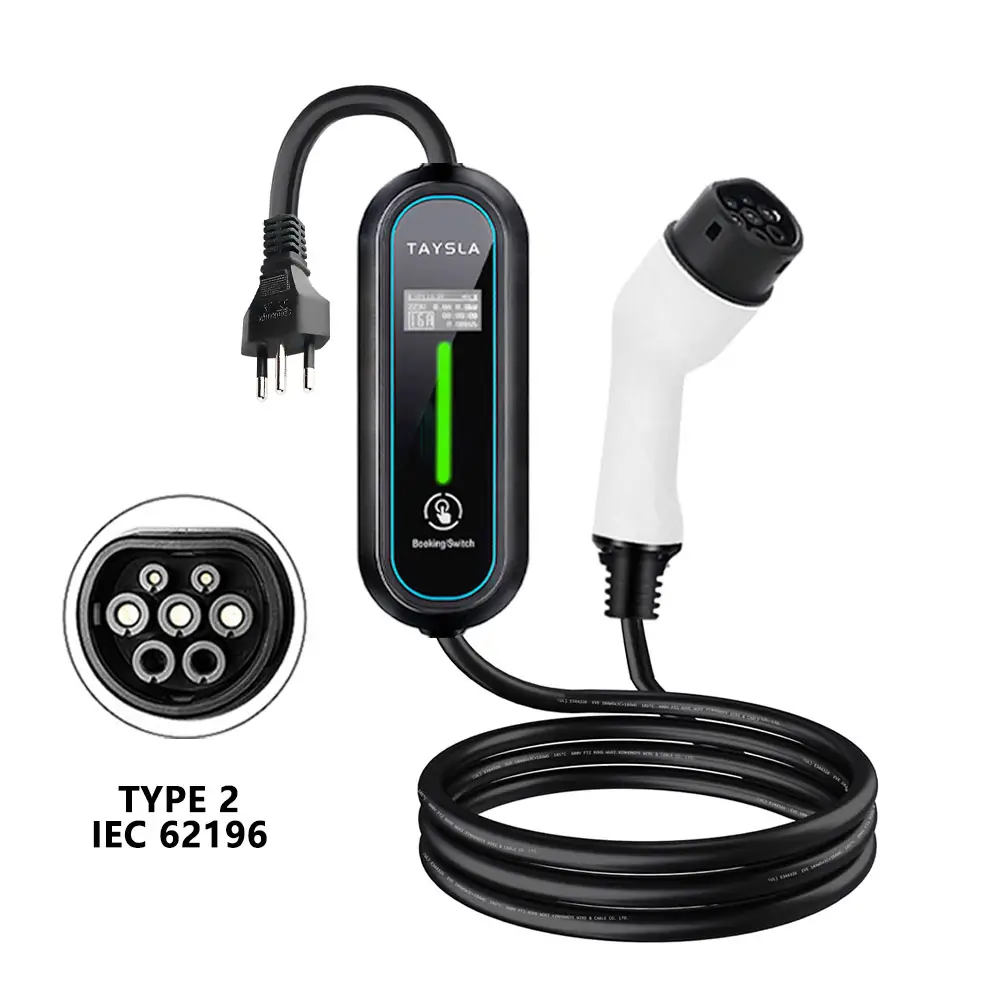

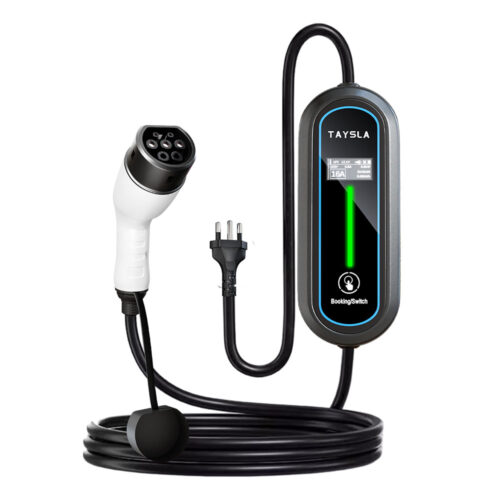

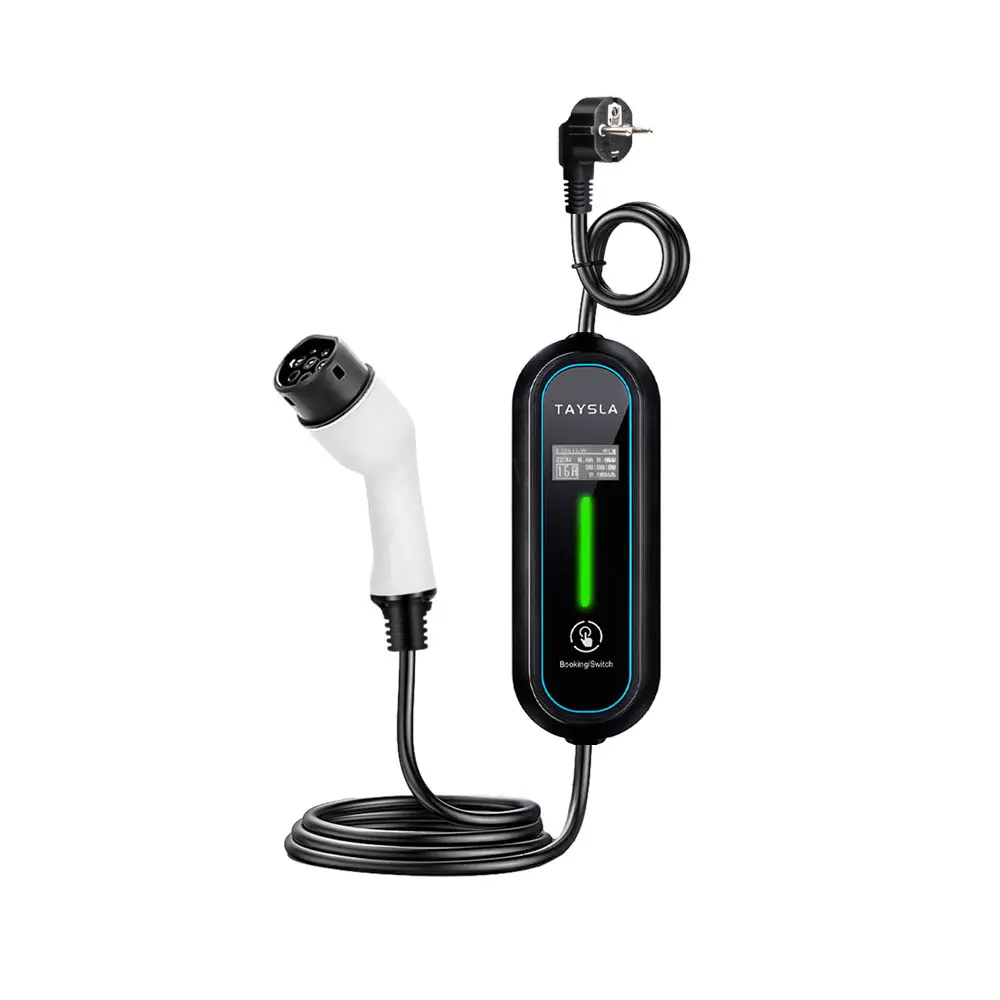

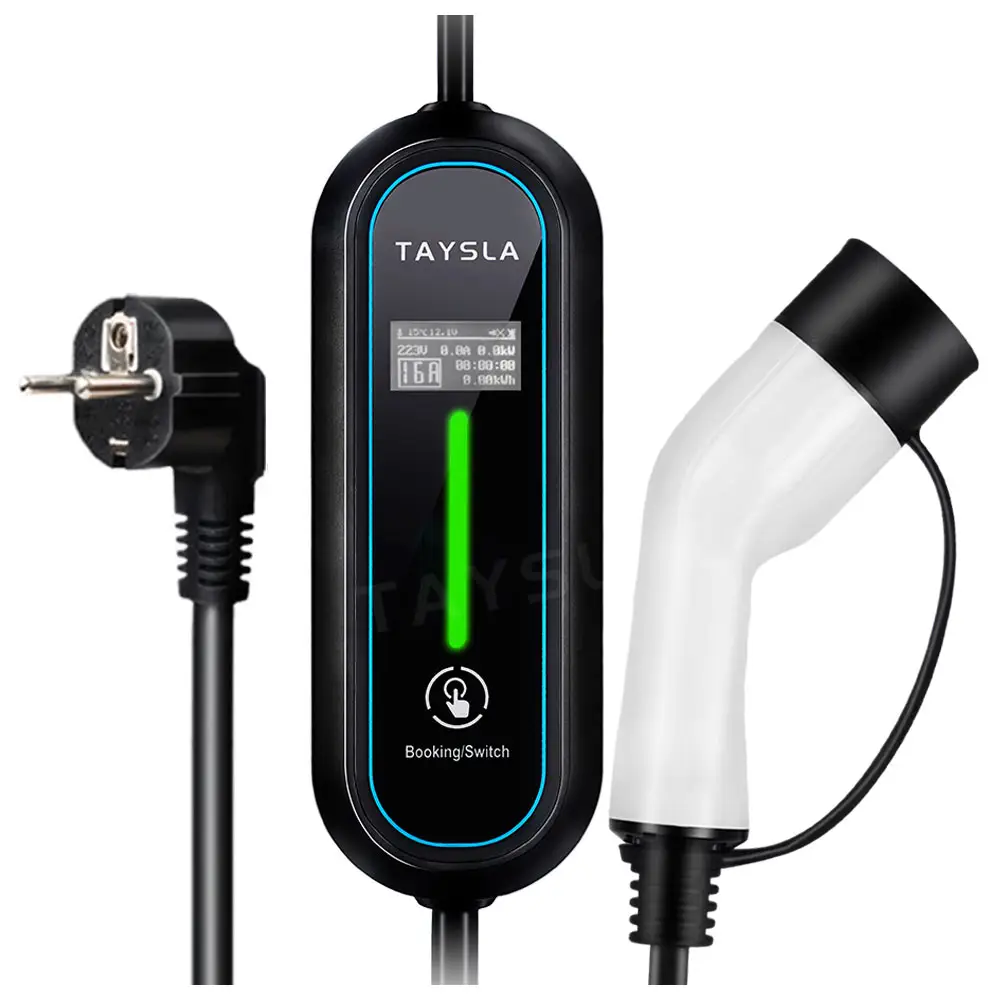

Taysla portable electric vehicle charger AC 16A 3.5KW

Portable: Compact, lightweight, easy to transport.

Scheduled Charging: Saves on energy costs.

Display Screen: Clear, real-time charging info.

Adjustable Current: 8A to 16A, with reservation option.

Enquiry now
WhatsApp
  • Overseas warehouse: Brazil, Mexico, EU, Thailand
  • Payment method: Xtranfer, paypal, T/T, L/C
  • Customised services: customised products, customised packaging

Description

Compact and Portable Design

This portable electric vehicle charger We had our product designers specialise in having a compact curved shape, a design that is easy to roll up and transport. The result is a charger that is ideal for home use, allowing users to conveniently charge their EVs on the go with a simple plug and play setup.

Scheduled Charging for Cost Efficiency

In addition to the functionality of the portable electric vehicle charger we have also designed a scheduled function that allows the user to avoid peak loads and save on energy costs by using the charger’s scheduled charging function. By setting the charging schedule to run during off-peak hours, you can achieve the highest efficiency in charging your electric vehicle.

Clear Display Screen

We have also equipped the portable electric vehicle charger with a 1.33-inch display that allows users to monitor the charging status of their EV in real time. Once your EV has started charging you can check the charging status, scheduled charging duration, charging power and other information to ensure that you are always aware of the charging status of your EV.

Adjustable Current Settings

The charger is also equipped with adjustable current options (8A, 10A, 13A, 16A) to suit different EV models and charging needs. This feature allows our portable electric vehicle charger to charge most of the EV makes and models on the market (e.g. BYD, Great Wall, Mercedes-Benz, Xiaopeng, etc.).

Appearance structure Model Phantom  Plus 3.5KW
Size Control Box 215*77*45mm【H*W*D】
Installation Method Floor-mounted/Wall-Mounted
Net Weight About 2.1KG
Cable Size 3*2.5mm²+0.75mm²
Cable Length 5M or Customizable
Electrical index Input Voltage AC80V-260V
Input Frequency 50Hz/60Hz
Max Power 3.5KW
Output Voltage AC80V-260V
Output Current 8A-10A-13A-16A
Standby Power 3W
Environment index Work Humidity 5％~95％(non-condensing)
Work Temperature -30℃~+50℃
Work Altitude ＜2000M
Protection Class Charging Gun IP56/Control Box IP66
Standard Type1 SAE J1772、Type2 IEC 62196-2、GB/T 20234
Flammability rating UL94 V2
Certificate CE、RoHS、FC
Functional design Interface Display Screen、LED Indicator Light
Plug EU Plug, US Plug or Customizable
Safety design Over Curren Protection、Residual Current Protection、Ground Protection、Surge Protection、Over/Under Voltage, Frequency, Temperature Protection
Packaging specification L*W*H: 31*31*11cm【2.3KG】

Our Portable EV Charger is compatible with 99% of all electric vehicles, for other models please contact us for advice.

Supportable-Brands

Portable Ev Charger Phantom Plus3.5kw packing

  • Do not submerge the electric vehicle charger in water.
  • Do not step on,fold,or knot the cable.
  • Do not drop the electric vehicle charger or place heavy objects on it.
  • Do not place the charging cable near high-temperature objects when charging.
  • Do not operate the charger outside its temperature range of -25℃ to 55℃.
  • The power input cable should be at least 32.5mm (recommended 34mm)and equipped with a standard 16A socket.It is recommended that the power distribution be carried out by professionals.
  • Do not put your fingers into the charging connector when the power plug is still connected to the power source.
  • Do not use this electric vehicle charger when the cable is damaged.
  • Do not use an extension cord or adapter with this electric vehicle charger.
  • Do not hang the control box during charging to prevent poor con-tact and burning of the power plug.
  • This product has a built-in non-grounding function.Please check with the manufacturer on whether your vehicle requires grounding to avoid electric shock risk.
  • Plug the charger plug into the power supply first,then connect the charging gun to the vehicle to start charging.After charging,unplug the gun from the vehicle before unplugging the charger.Do not unplug while it’s live.

What payment methods are accepted?

We generally accept Xtranfer, paypal, T/T payment methods.

How long does it take to ship an order?

We will send out the goods within 3-10 working days after receiving the payment, if you have customised requirements, the delivery time will be extended to about 30 days.

What types of EV chargers are available?

There are three main types: Level 1 (standard home outlets), Level 2 (dedicated home or public chargers), and DC fast chargers (public charging stations for rapid charging).

How to Choose a Suitable Charger?

  • Check the vehicle manual or open the car charging port todetermine the type of charging interface.
  • If Type 1 interface,choose Type 1 charger.If Type 2 interface,choose Type 2 charger.If GB/T interface,please make a note in the order and contact seller.

How soon will I receive my shipment?

For sample orders or small goods we usually use international express delivery, usually will be delivered in 7-15 working days (if encountered holidays or special circumstances may be delayed); for bulk goods we usually use sea freight, the specific time depends on the destination country and the ship schedule, may be more than a month.
