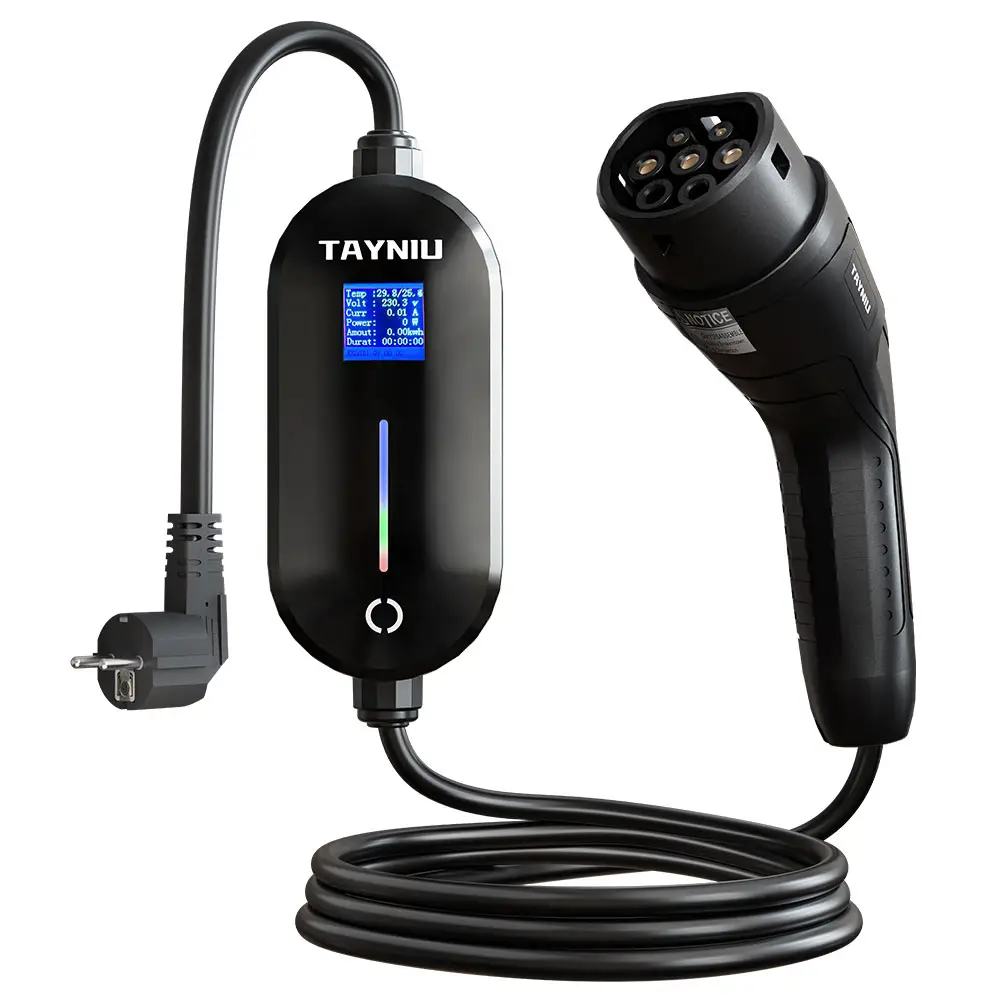

Tayniu level 2 electric car charger AC 16A 3.5kW

Portable and Lightweight: Easy to use anywhere.

Adjustable Power: Compatible with various EVs.

Real-Time Monitoring: On-screen charging updates.

Scheduled Charging: Saves energy costs.

Enquiry now
WhatsApp
  • Overseas warehouse: Brazil, Mexico, EU, Thailand
  • Payment method: Xtranfer, paypal, T/T, L/C
  • Customised services: customised products, customised packaging

Description

Compact and Lightweight Design

This level 2 electric car charger is designed for maximum convenience, featuring a compact and lightweight build that makes it easy to use in any location. Whether you’re at home or on the go, this charger is your ideal companion for keeping your electric vehicle powered up.



Four Adjustable Power Levels

This nifty level 2 electric car charger has got four tweakable power levels to cozy up with the huge majority of electric vehicle types and models out there in the market. Effortlessly shift among the power settings to fulfill your particular charging needs, guaranteeing compatibility and efficiency each time you charge.



Real-Time Display for Safe Charging

The real-time display of the level 2 electric car charger dishes out the latest and greatest info on the charging status. You can get the lowdown on everything, like the charging time and maximum power, and so on. This nifty feature makes sure your charging process is not just super-efficient but also as safe as houses, giving you a total sense of calm and reassurance.



Scheduled Charging Capability

This level 2 electric car charger also has the ability to schedule charging appointments, so you can optimise your energy consumption with the scheduled charging feature. Scheduling charging at off-peak times (e.g. at night) can help you reduce your electricity bills and minimise your environmental impact.



Combining flexibility, safety and efficiency, this level 2 electric car charger is a must-have EV charging tool for every EV owner.

Appearance structure Model AquaPro 3.5KW
Size Control Box 178*83*45mm【H*W*D】
Installation Method Floor-mounted/Wall-Mounted
Net Weight About 2.1KG
Cable Size 3*2.5mm²+0.75mm²
Cable Length 5M or Customizable
Electrical index Input Voltage AC80V-260V
Input Frequency 50Hz/60Hz
Max Power 3.5KW
Output Voltage AC80V-260V
Output Current 8A-10A-13A-16A
Standby Power 3W
Environment index Work Humidity 5％~95％(non-condensing)
Work Temperature -30℃~+50℃
Work Altitude ＜2000M
Protection Class Charging Gun IP55/Control Box IP56
Standard Type 2 IEC 62196-2
Flammability rating UL94 V0
Certificate CE、TUV
Functional design Interface Display Screen、LCD Indicator Light
Plug EU Plug, US Plug or Customizable
Safety design Earth Leakage, Over Current, Over/Under Voltage, Over/Under Frequency Ground, CP Abnormal, ShortCircuit, Over Temperature, Electrostatic
Packaging specification L*W*H:  31*31*11cm【2.3KG】

Our Portable EV Charger is compatible with 99% of all electric vehicles, for other models please contact us for advice.

Supportable-Brands

  • Do not submerge the electric vehicle charger in water.
  • Do not step on,fold,or knot the cable.
  • Do not drop the electric vehicle charger or place heavy objects on it.
  • Do not place the charging cable near high-temperature objects when charging.
  • Do not operate the charger outside its temperature range of -25℃ to 55℃.
  • The power input cable should be at least 32.5mm (recommended 34mm)and equipped with a standard 16A socket.It is recommended that the power distribution be carried out by professionals.
  • Do not put your fingers into the charging connector when the power plug is still connected to the power source.
  • Do not use this electric vehicle charger when the cable is damaged.
  • Do not use an extension cord or adapter with this electric vehicle charger.
  • Do not hang the control box during charging to prevent poor con-tact and burning of the power plug.
  • This product has a built-in non-grounding function.Please check with the manufacturer on whether your vehicle requires grounding to avoid electric shock risk.
  • Plug the charger plug into the power supply first,then connect the charging gun to the vehicle to start charging.After charging,unplug the gun from the vehicle before unplugging the charger.Do not unplug while it’s live.

What payment methods are accepted?

We generally accept Xtranfer, paypal, T/T payment methods.

How long does it take to ship an order?

We will send out the goods within 3-10 working days after receiving the payment, if you have customised requirements, the delivery time will be extended to about 30 days.

What types of EV chargers are available?

There are three main types: Level 1 (standard home outlets), Level 2 (dedicated home or public chargers), and DC fast chargers (public charging stations for rapid charging).

How to Choose a Suitable Charger?

  • Check the vehicle manual or open the car charging port todetermine the type of charging interface.
  • If Type 1 interface,choose Type 1 charger.If Type 2 interface,choose Type 2 charger.If GB/T interface,please make a note in the order and contact seller.

How soon will I receive my shipment?

For sample orders or small goods we usually use international express delivery, usually will be delivered in 7-15 working days (if encountered holidays or special circumstances may be delayed); for bulk goods we usually use sea freight, the specific time depends on the destination country and the ship schedule, may be more than a month.
