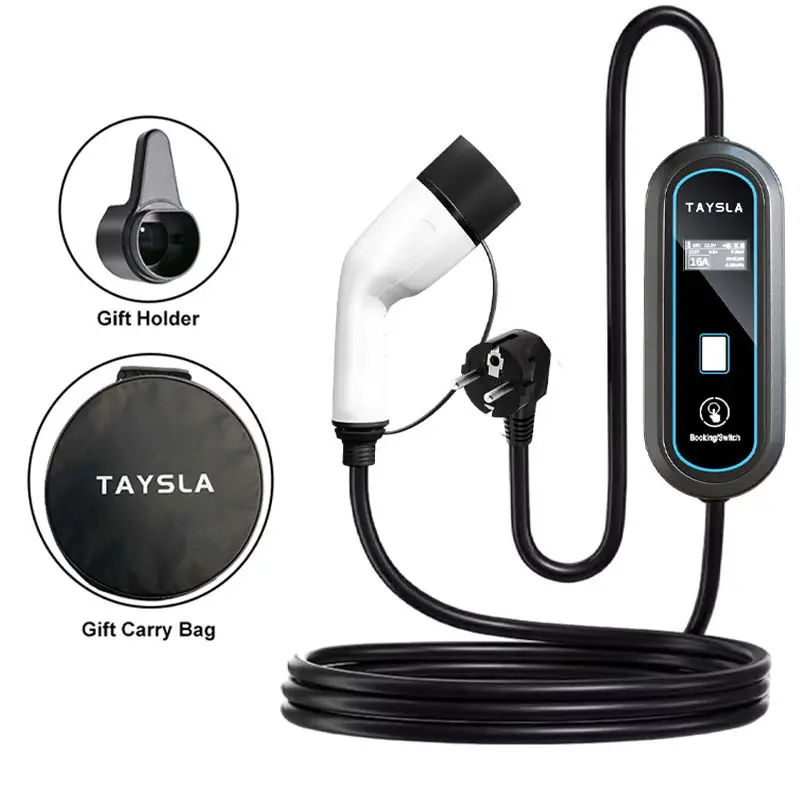

Taysla portable electric car charger Phantom AC 16A 3.5kW

High Portability: Compact and lightweight for easy use anywhere.

Adjustable Current: Four levels to fit different EV models.

Display Screen: Real-time charging status for safety.

Scheduled Charging: Saves on electricity costs by avoiding peak times.

Enquiry now
WhatsApp
  • Overseas warehouse: Brazil, Mexico, EU, Thailand
  • Payment method: Xtranfer, paypal, T/T, L/C
  • Customised services: customised products, customised packaging

Description

Charging anytime, anywhere: your reliable friend

What to do if your electric car suddenly runs out of battery on the road? Usually we look for a public charging station nearby, right? What if there happens to be no charging station nearby and your electric car is running out of power? There is no need to look for a charging station if you have this product with you. Our portable electric car charger AC 16A 3.5KW is designed for your travelling, it can provide you with reliable and fast charging service wherever you go. This portable car charger ensures that you can charge your car anywhere there is an AC outlet, and is compatible with most electric car models and manufacturers. Whether you’re charging at home or on the go, this portable charger has your charging needs covered.

Accelerated Charging

Imagine a scenario where you come home from work and just plugged in the charging gun, and then 1 hour later you suddenly have an emergency and need to leave the house, but what if your electric car doesn’t have enough power at that time? Whether you are charging at home or on the go, speed is always a factor; this portable electric car charger AC 16A 3.5KW output power of 3.5KW will help you charge your car in a shorter time, avoiding long waiting time. Its advanced safety measures ensure a stable and efficient power transfer every time, thus protecting your car battery so you can use it with confidence. This portable electric car charger allows you to enjoy your trip more freely and avoid long queues at public charging stations.

Rugged and Durable

The 16A 3.5KW portable electric car charger is manufactured with high quality materials and eco-friendly components to withstand the stresses of travelling. This charger can operate in the harshest of environments and will not fail even in the heat or cold, rain or dust. Its rugged exterior ensures that you are always prepared for the unexpected, making it ideal for both urban and off-road travel. This compact and lightweight charger is easy to carry and store, so you can keep it in your car and take it with you.

Appearance structure Model Phantom 3.5KW
Size Control Box 215*77*45mm【H*W*D】
Installation Method Floor-mounted/Wall-Mounted
Net Weight About 1.8KG
Cable Size 3*2.5mm²+0.75mm²
Cable Length 3.5M or 5M or Negotiation
Input Voltage AC80V-260V
Electrical index Input Frequency 50Hz/60Hz
Max Power 3.5KW
Output Voltage AC80V-260V
Output Current 8A-10A-13A-16A
Standby Power 3W
Work Humidity 5％~95％(non-condensing)
Environment index Work Temperature -30℃~+50℃
Work Altitude ＜2000M
Protection Class Charging Gun IP56/Control Box IP66
Standard Type1 SAE J1772、Type2 IEC 62196-2、GB/T 20234
Flammability rating UL94 V2
Certificate CE、RoHS、FC
Functional design Interface Display Screen、LED Indicator Light
Plug EU Plug, US Plug or Customizable
Safety design Over Curren Protection、Residual Current Protection、Ground Protection、Surge Protection、Over/UnderVoltage, Frequency, Temperature Protection
Packaging specification L*W*H:  31*31*11cm【2KG】

Our Portable EV Charger AC 16A 3.5KW is compatible with 99% of all electric vehicles, for other models please contact us for advice.

Supportable-Brands

  • Do not submerge the electric vehicle charger in water.
  • Do not step on,fold,or knot the cable.
  • Do not drop the electric vehicle charger or place heavy objects on it.
  • Do not place the charging cable near high-temperature objects when charging.
  • Do not operate the charger outside its temperature range of -25℃ to 55℃.
  • The power input cable should be at least 32.5mm (recommended 34mm)and equipped with a standard 16A socket.It is recommended that the power distribution be carried out by professionals.
  • Do not put your fingers into the charging connector when the power plug is still connected to the power source.
  • Do not use this electric vehicle charger when the cable is damaged.
  • Do not use an extension cord or adapter with this electric vehicle charger.
  • Do not hang the control box during charging to prevent poor con-tact and burning of the power plug.
  • This product has a built-in non-grounding function.Please check with the manufacturer on whether your vehicle requires grounding to avoid electric shock risk.
  • Plug the charger plug into the power supply first,then connect the charging gun to the vehicle to start charging.After charging,unplug the gun from the vehicle before unplugging the charger.Do not unplug while it’s live.

What payment methods are accepted?

We generally accept Xtranfer, paypal, T/T payment methods.

How long does it take to ship an order?

We will send out the goods within 3-10 working days after receiving the payment, if you have customised requirements, the delivery time will be extended to about 30 days.

What types of EV chargers are available?

There are three main types: Level 1 (standard home outlets), Level 2 (dedicated home or public chargers), and DC fast chargers (public charging stations for rapid charging).

How to Choose a Suitable Charger?

  • Check the vehicle manual or open the car charging port todetermine the type of charging interface.
  • If Type 1 interface,choose Type 1 charger.If Type 2 interface,choose Type 2 charger.If GB/T interface,please make a note in the order and contact seller.

How soon will I receive my shipment?

For sample orders or small goods we usually use international express delivery, usually will be delivered in 7-15 working days (if encountered holidays or special circumstances may be delayed); for bulk goods we usually use sea freight, the specific time depends on the destination country and the ship schedule, may be more than a month.
