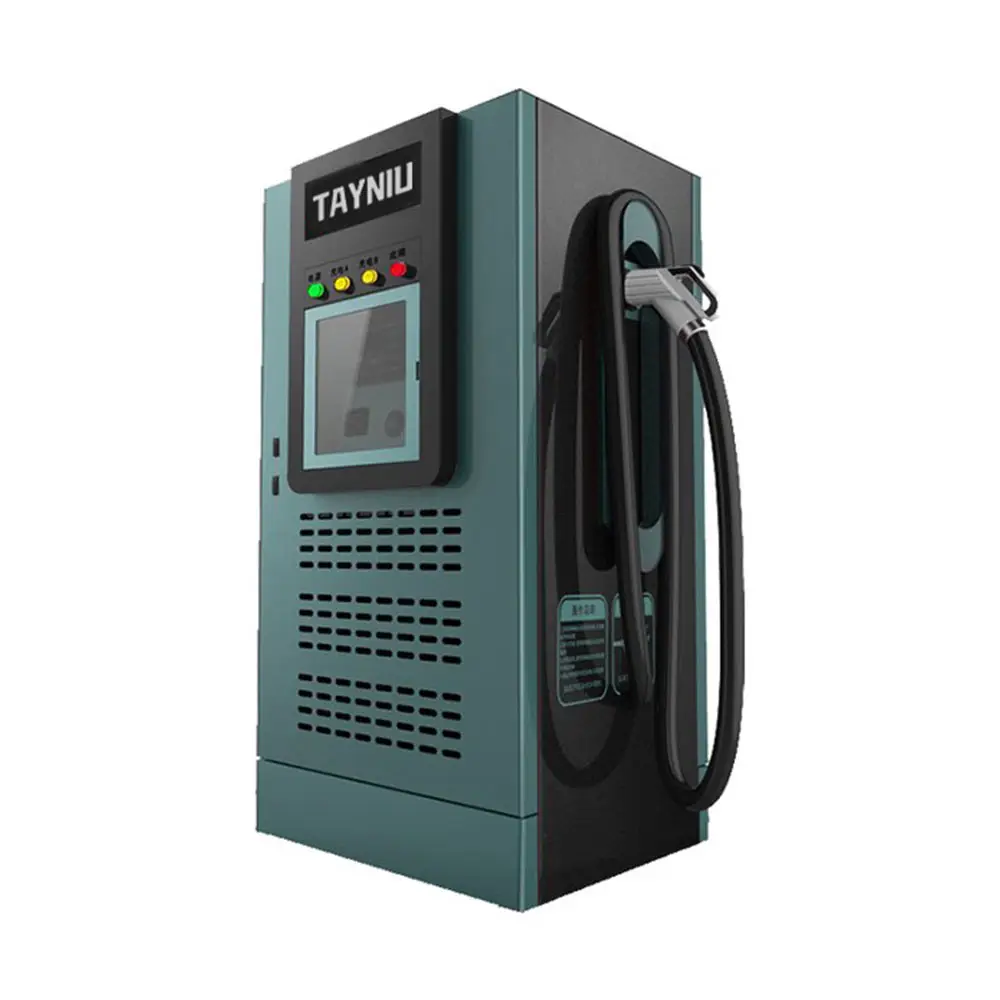

Tayniu commercial ev charging station

Robust Build: IP54-rated metal housing.

Public-Ready: Includes metering, billing, and user management.

Simple Setup: Easy to configure and install.

Smart Charging: GPRS/Ethernet for QR code access.

Safety Features: Protection against various faults and environmental conditions.

Description

Robust Construction:

Featuring a thickened metal housing with an IP54 protection grade, this commercial ev charging station ensures durability and reliable performance in various environments.



Advanced Functionality:

To properly serve public and commercial activities, the management station of this commercial ev charging station also features thorough metering, billing, and user management tools.



User-Friendly Design:

The all-in-one design of the workstation of this commercial ev charging station facilitates configuration and installation by means of simplicity.



Smart Connectivity:

By supporting GPRS/Ethernet communication, this commercial ev charging station also enables QR code scanning access to the charging platform.



Enhanced Safety:

Safety elements including emergency stop, short-circuit protection, over-temperature, leakage, overload, lightning storm protection and water/dust resistance abound in this commercial ev charging station.

Type GB CEN ANSI JIS
Power specification 180kW/240kW 180kW/240kW 180kW/240kW 180kW/240kW
input voltage 380VAC 400VAC 480VAC 480VAC
incoming frequency 50/60Hz 50/60Hz 50/60Hz 50/60Hz
output voltage DC50V-1000V DC 220V-1000V DC 220V-1000V DC 220V-1000V
level of protection IP54 IP54 IP54 IP54
charging interface GB/T 20234.3 CCS2 IEC 62196Type1 IEC 62196Type1
usagetemperature -30℃-60℃ -30℃-60℃ -30℃-60℃ -30℃-60℃
ambient humidity RH5%-95% RH5%-95% RH5%-95% RH5%-95%
altitude ≤2000m ≤2000m ≤2000m ≤2000m
start method plug and play/scan QR codes/swipingcard/NFC/bluetooth plug and play/swiping card/NFC plug and play/swiping card/NFC plug and play/ swiping card/NFC
communication mode GB/T 27930 DIN SPEC70121 ISO 15118 ISO15118 CHAdeMO
installation method console mode
main engine size 1630×824×568mm
start method plug and play, scan QR codes, swiping card, NFC

Our DC Charging Station is compatible with 99% of all electric vehicles, for other models please contact us for advice.

Supportable-Brands

  • Do not submerge the electric vehicle charger in water.
  • Do not step on,fold,or knot the cable.
  • Do not drop the electric vehicle charger or place heavy objects on it.
  • Do not place the charging cable near high-temperature objects when charging.
  • Do not operate the charger outside its temperature range of -25℃ to 55℃.
  • The power input cable should be at least 32.5mm (recommended 34mm)and equipped with a standard 16A socket.It is recommended that the power distribution be carried out by professionals.
  • Do not put your fingers into the charging connector when the power plug is still connected to the power source.
  • Do not use this electric vehicle charger when the cable is damaged.
  • Do not use an extension cord or adapter with this electric vehicle charger.
  • Do not hang the control box during charging to prevent poor con-tact and burning of the power plug.
  • This product has a built-in non-grounding function.Please check with the manufacturer on whether your vehicle requires grounding to avoid electric shock risk.
  • Plug the charger plug into the power supply first,then connect the charging gun to the vehicle to start charging.After charging,unplug the gun from the vehicle before unplugging the charger.Do not unplug while it’s live.

What payment methods are accepted?

We generally accept Xtranfer, paypal, T/T payment methods.

How long does it take to ship an order?

We will send out the goods within 3-10 working days after receiving the payment, if you have customised requirements, the delivery time will be extended to about 30 days.

What types of EV chargers are available?

There are three main types: Level 1 (standard home outlets), Level 2 (dedicated home or public chargers), and DC fast chargers (public charging stations for rapid charging).

How to Choose a Suitable Charger?

  • Check the vehicle manual or open the car charging port todetermine the type of charging interface.
  • If Type 1 interface,choose Type 1 charger.If Type 2 interface,choose Type 2 charger.If GB/T interface,please make a note in the order and contact seller.

How soon will I receive my shipment?

For sample orders or small goods we usually use international express delivery, usually will be delivered in 7-15 working days (if encountered holidays or special circumstances may be delayed); for bulk goods we usually use sea freight, the specific time depends on the destination country and the ship schedule, may be more than a month.
