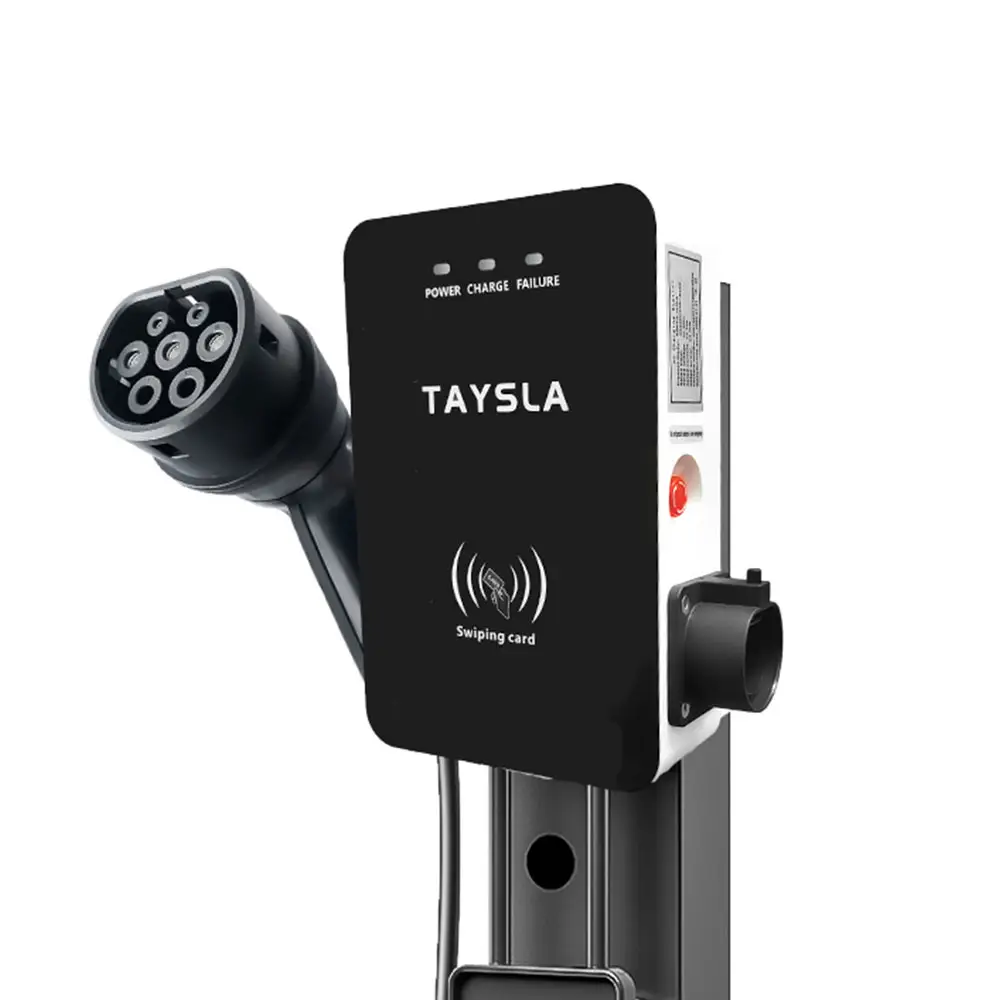

Taysla Wallbox ev charger AC 32A 7kW

Versatile Installation: Mounts on walls or columns.

Energy Efficiency: Less than 3 watts standby power.

Clear Charging Status: Three indicators for progress.

Convenient Operation: Swipe card system for easy use.

Description

Versatile Installation

Hey there! Our amazing wallbox ev charger offers a bunch of cool mounting possibilities. You get to pick! You can stick it on a wall or a column. Say you’re at home with your own garage, mounting it on a wall can save you heaps of space. But if you’ve got a parking spot and no walls around, no worries! Just go for a column and mount it there. It gives you flexible choices to fit your space and what you like.



Energy Efficiency

Our wallbox ev charger consumes less than 3W in standby power, which greatly avoids power consumption when you are not charging, and can effectively save electricity costs and reduce energy waste.



Clear Charging Status

In terms of display design, this wallbox ev charger of ours has three indicator lights marking different charging statuses, which can effectively monitor the charging status of your electric vehicle and ensure that you are always aware of the charging status of your electric vehicle.



Convenient Operation

In use, our wallbox ev charger comes with a chic swipe system. It does away with the hassle of the system and makes charging super simple and easy. A convenient and fast charging experience for users.

Appearance structure Model Thunder
Size Wall Box 340*220*95mm【H*W*D】
Installation Method Wall-Mounted / Column
Net Weight About 5KG
Cable Size 3*6mm²+0.75mm²
Cable Length 5M or Customizable
Electrical index Input Voltage AC110V-230V
Input Frequency 50Hz/60Hz
Max Power 7KW
Output Voltage AC 110V-230V
Output Current 32A
Standby Power 3W
Environment index Work Humidity 5%~95%(non-condensing)
Work Temperature -30℃~+50℃
Work Altitude <2000M
Protection Class IP54

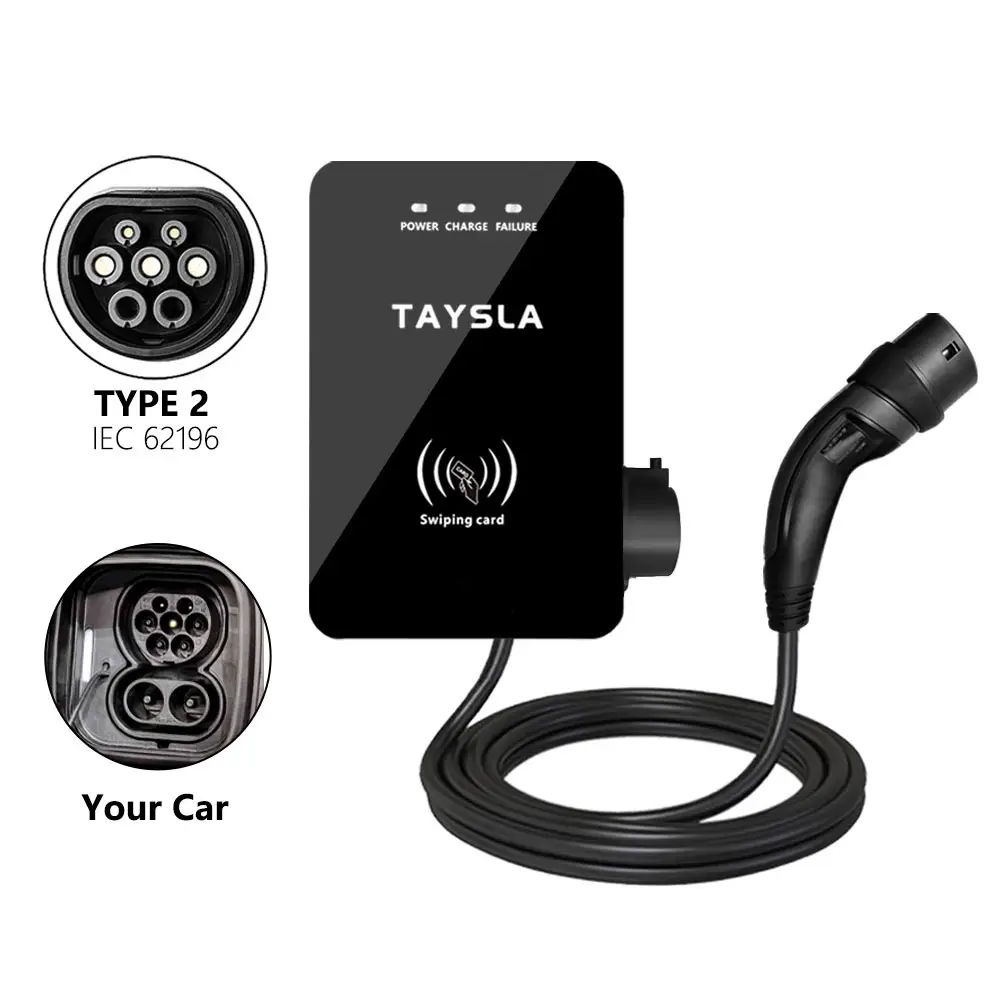

Standard Type 2 IEC 62196-2
Flammability rating UL94 V0
Certificate CE、TUV
Functional design Interface Indicator Light
Plug \
Safety design Over Curren Protection, Residual Current Protection, Ground Protection, Surge Protection, Over/Under Voltage, Frequency, Temperature Protection
Packaging specification L*W*H:  47*33*22cm【5.5KG】

Our Wallbox is compatible with 99% of all electric vehicles, for other models please contact us for advice.

Supportable-Brands

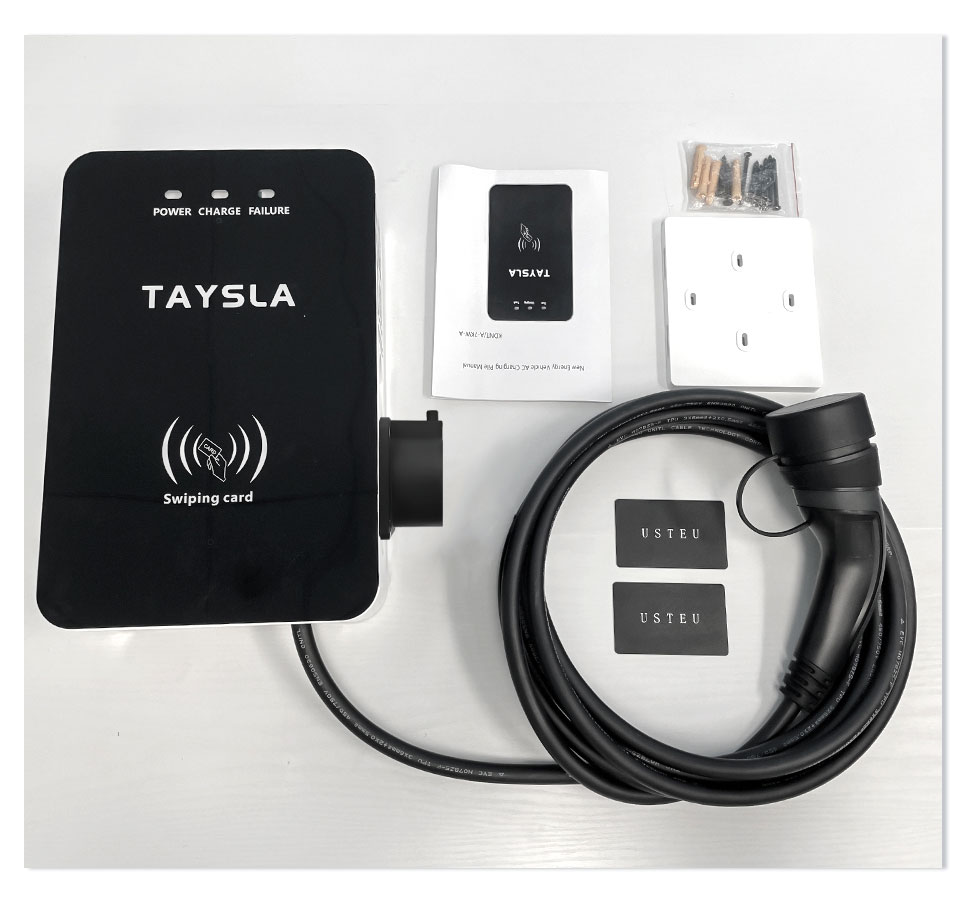

wallbox Thunder packaging display

Communicate with the property in advance

  • Check whether it can be installed
  • Allowable installed charging pile power
  • Qualification materials to be submitted

Power grid application

  • Firstly,apply for an electricity meter from the local department.
  • When applying,it is necessary to submit the parking space use certificate,identity certificate,property certificate,parking space and construction permit certificate
  • Second,for European users,please contact customer service.We will provide you with the contact information of the local Charging station installation company,and professional electricians will install it for you.(Installation requires additional paymen please consult customer service for specific fees.)

Make an appointment by phone

  • Customer service to submit the installation order,service provider and you telephone communication
  • Verify installation information and make an appointment

Charging pile door installation

  • Drawing construction drawings
  • Inform of all possible charges and amounts
  • Construction starts after signature confirmation
  • Power test after installation



What payment methods are accepted?

We generally accept Xtranfer, paypal, T/T payment methods.

How long does it take to ship an order?

We will send out the goods within 3-10 working days after receiving the payment, if you have customised requirements, the delivery time will be extended to about 30 days.

What types of EV chargers are available?

There are three main types: Level 1 (standard home outlets), Level 2 (dedicated home or public chargers), and DC fast chargers (public charging stations for rapid charging).

How to Choose a Suitable Charger?

  • Check the vehicle manual or open the car charging port todetermine the type of charging interface.
  • If Type 1 interface,choose Type 1 charger.If Type 2 interface,choose Type 2 charger.If GB/T interface,please make a note in the order and contact seller.

How soon will I receive my shipment?

For sample orders or small goods we usually use international express delivery, usually will be delivered in 7-15 working days (if encountered holidays or special circumstances may be delayed); for bulk goods we usually use sea freight, the specific time depends on the destination country and the ship schedule, may be more than a month.
